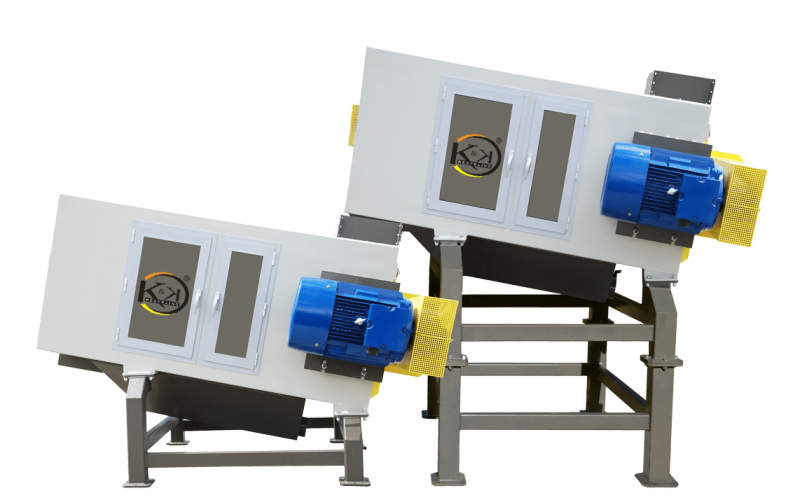

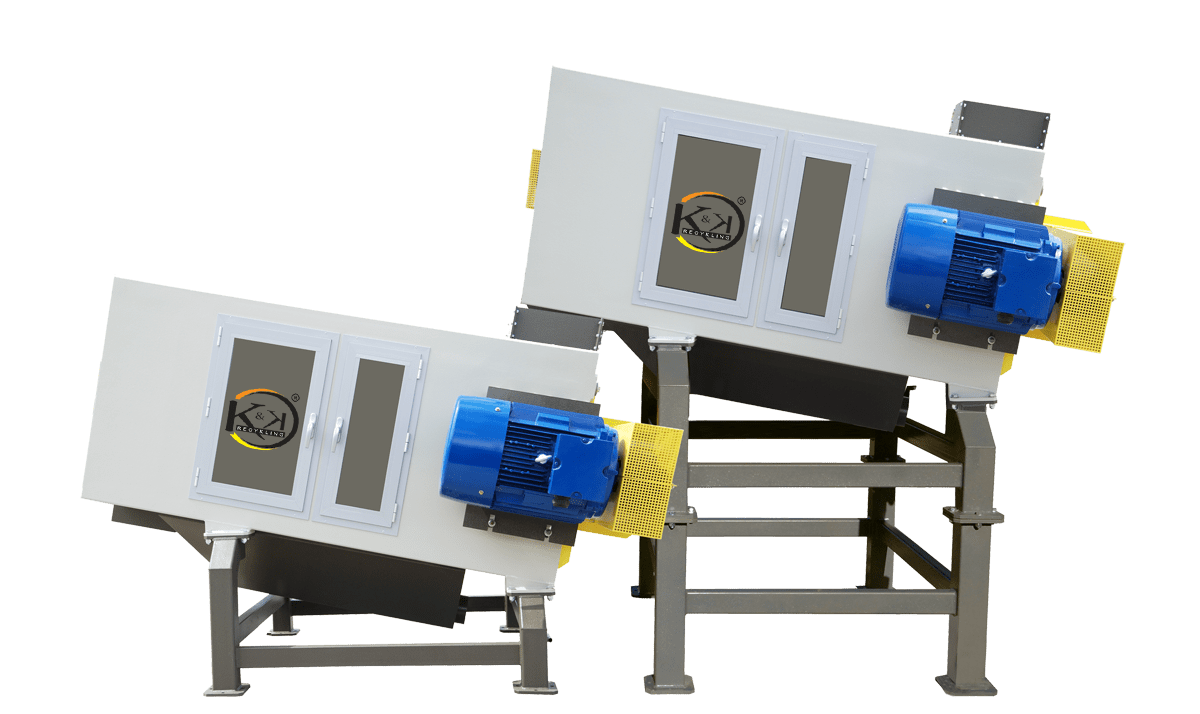

M-55 Evolution Tandem
M-55 Evolution Tandem
The effect of rich experience supported by knowledge in the field of plastic recycling and analysis of the needs of the dynamically developing industry.
Guaranteed benefits:
- Even more performance
- Lower energy consumption compared to the performance achieved
- High degree of material placement
- Effective removal of pollutants
- Stable operation without downtime and production losses
- Possibility to configure sieves with a mesh size of 3,4,5 mm
A number of unique solutions:
- Two sieve segments with different perforations - increased surface of discharged contamination with simultaneous limitation of the possibility of rejecting the washed material
- Multipoint water dosing results in increased and repeated flushing of pollutants contained in the mass of the supplied raw material
- Special non-contact seals - provide protection against the extraction of dirt and cleaning medium (water) outside the device - including reduces the wear of the seal parts, in addition, the non-contact work of the sealing elements reduces energy consumptio
- Work after initial crushing on 140 mm knife knives
Technical specificatons
Installed capacity
2 x 55 kW
Performance
1200 kg/h 100%
Weight
6360 kg
Water demand
to 2 x 50 m3/h
Power supply
400/50 V/Hz
Standart | CE |
Opinion of innovation | 2014 |
